Amid the rapid advancement of smart wearables, portable electronics, and highly integrated consumer electronics, terminal devices now demand higher standards for power efficiency, compactness, and stability. Leveraging years of expertise in crystal oscillator technology, Yangxing Technology has introduced the YSO131LR series 1.2V ultra-compact crystal oscillator, delivering reliable clock solutions for next-generation low-power systems with reduced power consumption and minimized size.
Main Features and Applications

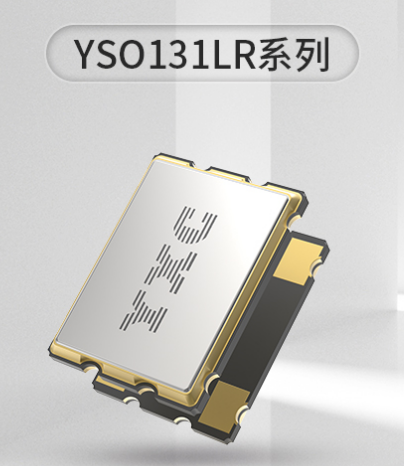

1. Ultra-small size design, releasing more structural space
The YSO131LR series features an ultra-compact package design, ideal for applications with stringent PCB space requirements, effectively assisting customers in:
· Reduce the overall size of the machine
· Improve internal layout flexibility
· Align with the design trends of lightweight and integrated products
It is especially suitable for smart wearable devices, miniature display modules and electronic products with strict size restrictions.
2. Operates at 1.2V low voltage, significantly reducing system power consumption
The series of crystal oscillators supports 1.2V power supply, ensuring stable output while effectively reducing overall power consumption.
Experimental data indicates the product's current consumption remains stable within 1.6-1.8mA, demonstrating excellent inter-sample consistency with minimal fluctuations. This performance enables extended battery life for powered devices, reduced system energy consumption and heat generation, and enhanced compatibility with low-power SoC/MCU platforms. The advantages are particularly pronounced in power-sensitive applications such as smartwatches, fitness trackers, and TWS (True Wireless Stereo) modules.
3. Stable and reliable frequency performance to meet long-term operational requirements

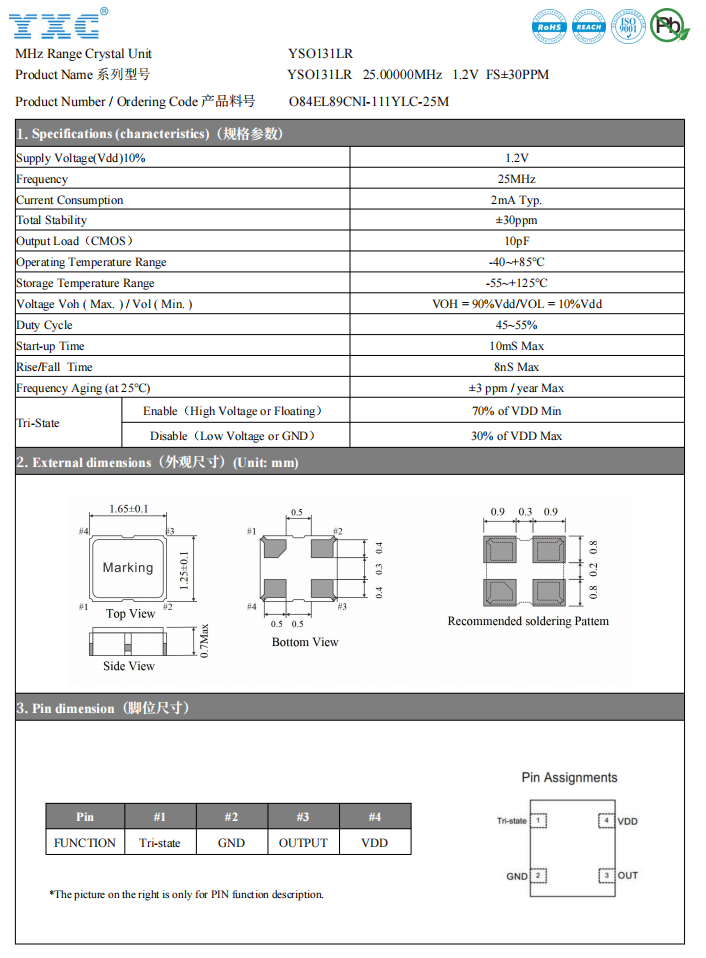

The YSO131LR series demonstrates outstanding frequency stability:
· Frequency range: 20–100 MHz
· Total frequency stability: ±30ppm
· Frequency aging: ≤±3 ppm/year (25°C)
The integrated production and testing processes ensure stable output performance even under prolonged operation and complex environments, meeting the stringent clock precision requirements of demanding applications.
IV. Quick Start and Excellent Signal Quality
The product supports fast boot-up (within 10ms), significantly reducing system boot time.
It also features excellent output waveform control:
· Duty Cycle：45%～55%
· Rise/fall time: ≤8ns
· CMOS output with stable load capacity
It helps the system to enter working state quickly and improve the overall response efficiency.
V. Extensive Application Scenarios
The YSO131LR series 1.2V ultra-compact crystal oscillator is specifically designed for:
· Smart wearable devices (watches, bracelets, etc.)
· Screen and display module
· Portable consumer electronics
· Terminal products with strict requirements on power consumption and size
Conclusion: Deeply Rooted in the Crystal Oscillator Industry, Continuously Creating Value for Customers
Yangxing Technology has long been dedicated to the crystal oscillator field, continuously optimizing product performance and consistency management to deliver stable, reliable, and highly adaptable clock products. The YSO131LR series stands as a key achievement in the company's efforts toward low voltage, low power consumption, and miniaturization.
If you're looking for a 1.2V crystal oscillator with ultra-compact size and low power consumption, the YSO131LR series is a reliable choice.
