Low Power Oscillators

MEMS lower power oscillator could completely replace active quartz crystal. Meanwhile, tolerance and resistance with temperature and shock vibration will be much better in function. With available customized frequency solutions, YXC has the fastest speed to react different kinds of demands. Its current consumption is 3.5mA typical at 1.8V. Warm tips: All frequencies in the frequency range are available, please contact us for delivery date if unconventional frequency.

Model	Voltage	Frequency	Dimension	Operating Temp	Frequency Tolerance	Output	Datasheet
SIT8008	1.8V~3.3V	1MHz-110MHz	2.0 x 1.6 mm 2.5 x 2.0 mm 3.2 x 2.5 mm 5.0 x 3.2 mm 7.0 x 5.0 mm	-20℃~+70℃ -40℃~+85℃	±20ppm ±25ppm ±50ppm	LVCMOS	Download

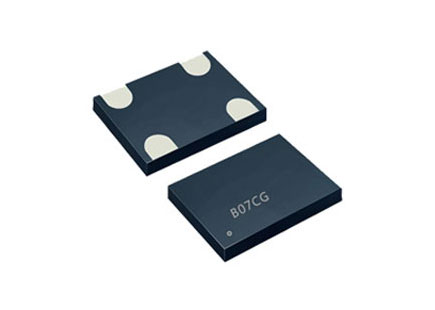

SIT8009	1.8V~3.3V	115MHz-137MHz	2.0 x 1.6 mm 2.5 x 2.0 mm 3.2 x 2.5 mm 5.0 x 3.2 mm 7.0 x 5.0 mm	-20℃~+70℃ -40℃~+85℃	±20ppm ±25ppm ±50ppm	LVCMOS	Download
SIT1602	1.8V~3.3V	5.37MHz-77.76MHz	2.0 x 1.6 mm 2.5 x 2.0 mm 3.2 x 2.5 mm 5.0 x 3.2 mm 7.0 x 5.0 mm	-20℃~+70℃ -40℃~+85℃	±20ppm ±25ppm ±50ppm	LVCMOS	Download
