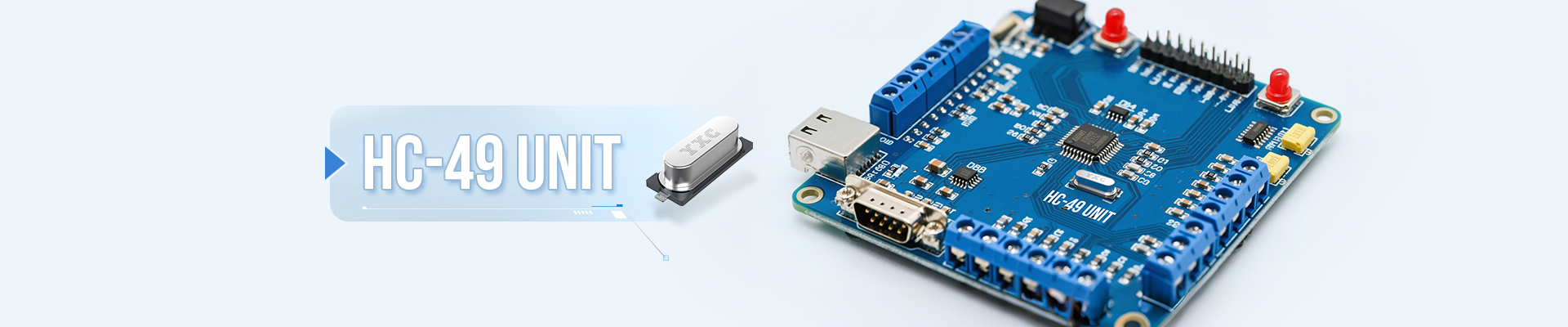

HC-49 unit

As a crystal oscillator manufacture and supplier, YXC produces a wide range of products that includes HC-49S and HC-49SMD which have competitive prices. We emphasizes the importance of original materials to ensure favourable quality. All products have passed ROHS and REACH certificate. It is the best choice for PC、STB、LCDM and Cable Modem. Warm tips: All frequencies in the frequency range are available, please contact us for delivery date if unconventional frequency.
Picture Model Frequency Dimension Load Capacitance Operating Temp Frequency Tolerance Datasheet
HC-49SMD HC-49SMD 3.2768MHz-64MHz 11.4 x 4.8 x 3.0 mm 12pF, 20pF, or specify -20℃~+70℃ -40℃~+85℃ ±10ppm ±20ppm Download
HC-49S HC-49S 3.2768MHz-64MHz 11.5 x 4.5 x 3.68 mm 12pF, 20pF, or specify -20℃~+70℃ -40℃~+85℃ ±10ppm ±20ppm Download

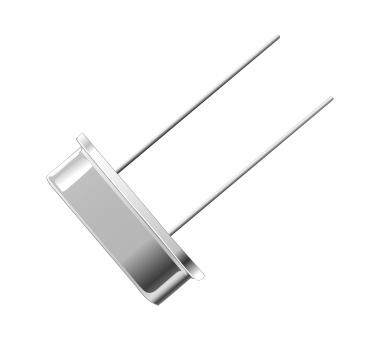

HC-49UM HC-49UM 1.5MHz-50MHz 11.0 x 4.6 x 13.4mm 12pF, 20pF, or specify -20℃~+70℃ -40℃~+85℃ ±10ppm ±20ppm Download
HC-49US3 HC-49US3 3.579545MHz-64MHz 11.5 x 5.0 x 3.68 mm 12pF, 20pF, or specify -40℃~+85℃ ±10ppm ±20ppm Download

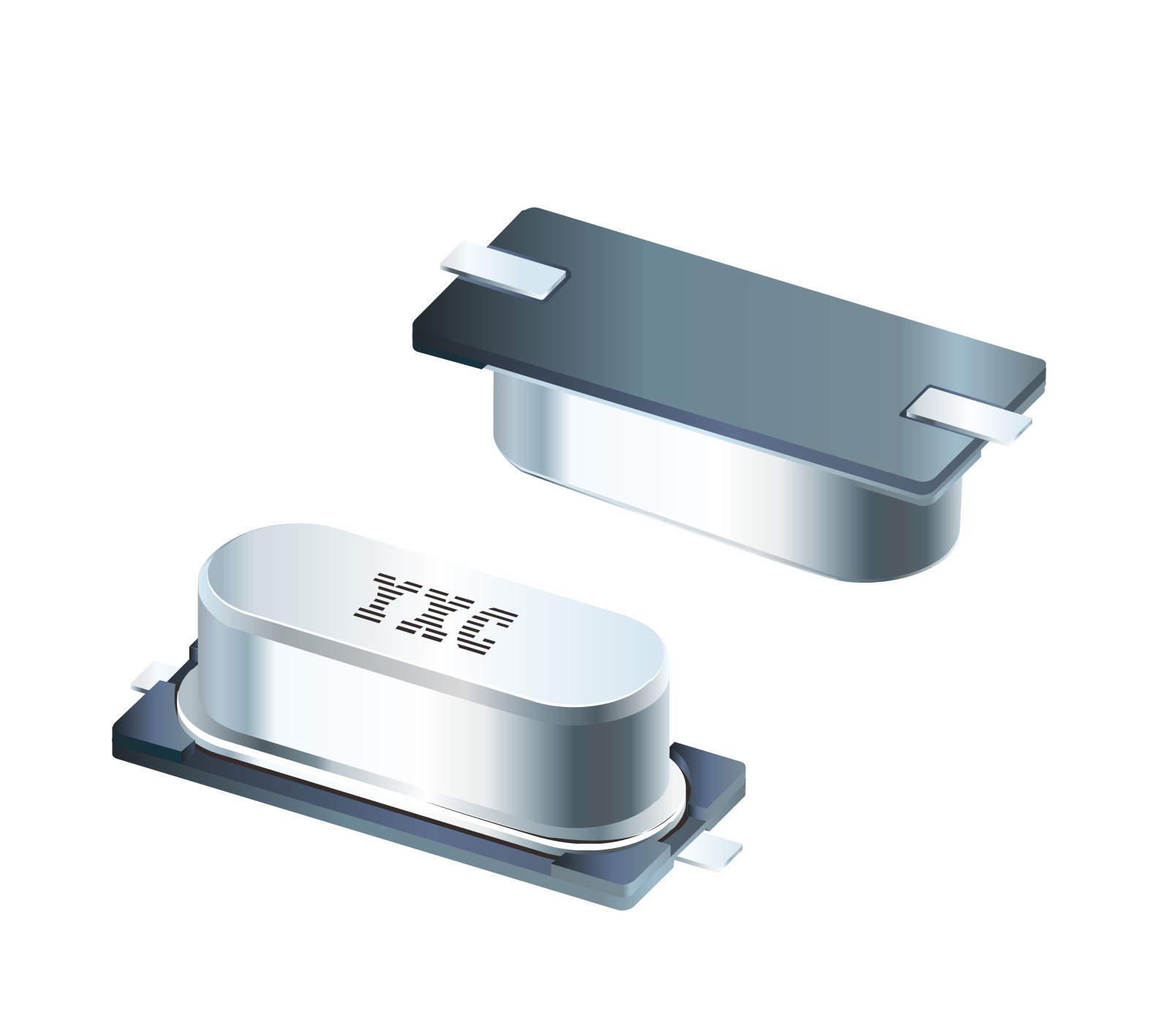

HC-49XSMD HC-49XSMD 8MHz-50MHz 6.1 x 4.0 x 2.0 mm 12pF, 20pF, or specify -20℃~+70℃ -40℃~+85℃ ±10ppm ±20ppm Download
HC-49SSMD HC-49SSMD 3.2768MHz-64MHz 11.4 x 4.8 x 3.0 mm 12pF, 20pF, or specify -20℃~+70℃ -40℃~+85℃ ±10ppm ±20ppm Download
