YXC programmable differential oscillator, frequency 125MHz, LVDS output, used in urine analyzers

Urine analyzer is an automated instrument for measuring certain chemical components in urine. It is an important tool for automated urine examination in medical laboratories and has the advantages of simple and fast operation. Under the control of a computer, the instrument collects and analyzes the color information of various reagent blocks on the test strip, and after a series of signal conversions, it finally outputs the measured chemical component content in the urine.

Urine analyzers generally consist of mechanical systems, optical systems, circuit control systems, analysis and processing software, display and printing systems.

The crystal oscillator plays an important role in providing a stable clock signal in the urine analyzer. Urine analyzers are usually equipped with an LCD display to display analysis results and an operating interface. By providing a stable clock signal, the crystal oscillator ensures that the content displayed on the LCD screen is clear and stable to provide a good user interface experience.

In addition, the urine analyzer may contain various sensors and actuators for detecting and controlling parameters such as flow and temperature of the urine sample. The clock signal of the crystal oscillator is used to synchronize and control the work of these sensors and actuators, ensuring that these sensors and actuators work in the correct time sequence and produce reliable measurement results.

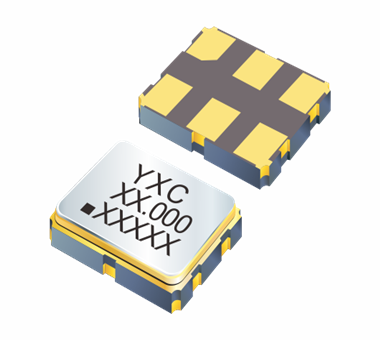

The OA2EIB112-125M material in the YSO210PR series of active crystal oscillators launched by YXC. The following are the application characteristics of the typical parameters of OA2EIB112-125M in urine analyzers:

1. 125MHz differential programmable oscillator provides accurate clock signals for the system. This series supports customization of any frequency point in the 10-1500MHz frequency range, and can be accurate to six decimal places. The delivery time is fast, and batches can be delivered within one week at the fastest.
2. Within the range of -40~﹢85℃, the frequency stability is ±50PPM, high precision and low jitter, ensuring the stability of high-speed data transmission without packet loss;
3. Differential dual signal output eliminates common mode noise and outputs a single-ended signal with twice the amplitude.

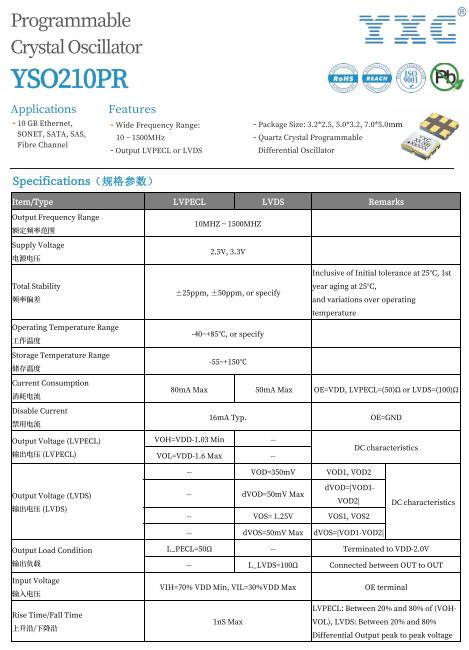

YXC crystal oscillator YSO210PR series, frequency is 125MHz, total frequency difference ±50PPM, the following is the YSO210PR series specifications.
