YXC quartz active differential programmable crystal oscillator, frequency 200MHZ, decimal point can be accurate to the last 6 digits, applied to 5G base station

5G base stations are the core equipment of 5G networks, providing wireless coverage and realizing wireless signal transmission between wired communication networks and wireless terminals. The architecture and form of base stations directly affect how 5G networks are deployed. Since the higher the frequency, the greater the attenuation during signal propagation, the base station density of 5G networks will be higher.

The role of crystal oscillators in 5G base stations is to provide precise signal sources to cooperate with them, so as to achieve the purpose of high-speed data transmission (exchange) between devices through network channels in a collaborative mode.
Therefore, 5G technology also puts forward the same strict requirements for crystal oscillators. It is mainly reflected in the following aspects:
1) High frequency output
2) High precision
3) High stability
4) Low phase noise
5) Low power consumption
6) Small size
7) Anti-interference (resistance to interference from surrounding electromagnetic signals, static electricity and temperature changes).

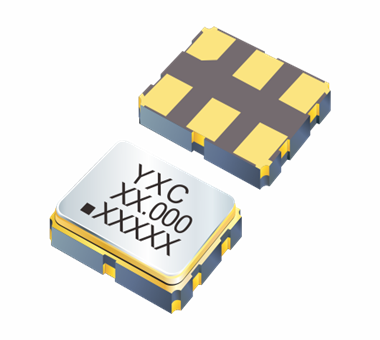

In response to the needs of 5G base stations, YXC launched the OA2EIB112-200M material in the differential programmable oscillator YSO210PR series. The following are the typical parameters of OA2EIB112-200M and its application characteristics in 5G base stations:
1. Quartz active differential programmable crystal oscillator, 200MHZ precise frequency point, this series can be used in the frequency range of 10~1500MHZ, with leading domestic technology, providing accurate reference clock for the system;
2. Working voltage 3.3V, meeting the needs of circuit design;
3. Widely used in 5G small base stations, servers, switches, optical modules and other high-speed AI-related fields
4. There are three output modes of LVDS, LVPECL, and HCSL to choose from, meeting various output ports

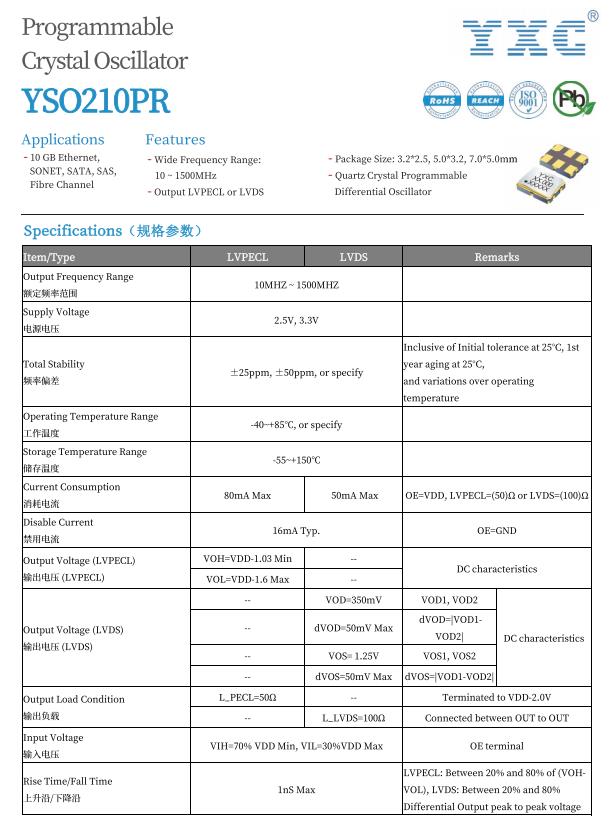

YXC quartz active differential programmable crystal oscillator YSO210PR series, frequency is 200MHZ, total frequency difference ±50PPM, the following is the YSO210PR series specification.
