YXC new product release
With the rapid development of science and technology, electronic components with low power consumption, high efficiency and high reliability have become the focus of the market. Especially in areas such as the Internet of Things (IoT), wearables, and portable devices, there is an increasingly urgent need to extend battery life.
In response to this trend, Yangxing Technology (YXC) has launched the YSO131LR series of low-voltage 1.2V single-ended oscillators to provide efficient, ultra-low power clock solutions for the above-mentioned emerging applications.
Active crystal oscillator YSO131LR series｜Designed for low power consumption applications
The YSO131LR series is a CMOS output active crystal oscillator with an operating voltage of 1.2V. Its notable feature is that the supply current is as low as 2mA,making it very suitable for low-power applications.
This series of products has a frequency range from 8MHz to 50MHz and provides a variety of industry-standard package sizes, including 2.0*1.6mm, 2.5*2.0mm, 3.2*2.5mm, 5.0*3.2mm and 7.0*5.0mm.
Its operating temperature range is -40 to +85°C, and the total frequency difference remains within ±30ppm within the full temperature range, ensuring excellent frequency stability in various harsh environments.

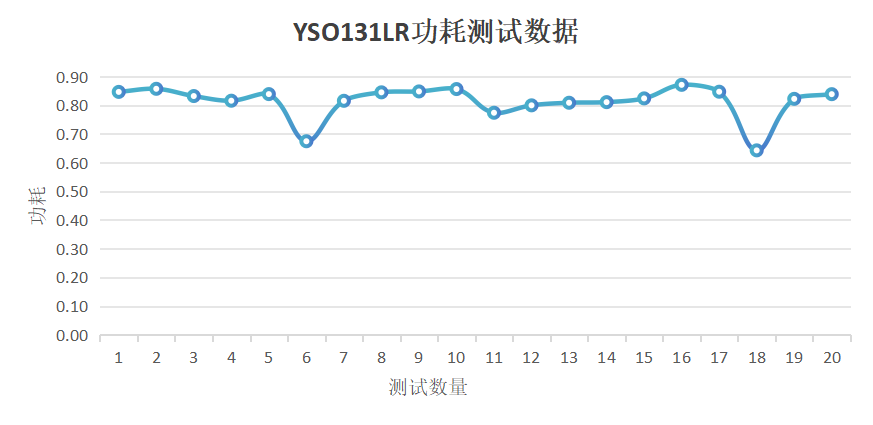

● Low power consumption characteristics
The YSO131LR series consumes less than 2mA current, significantly extending the battery life of the device.

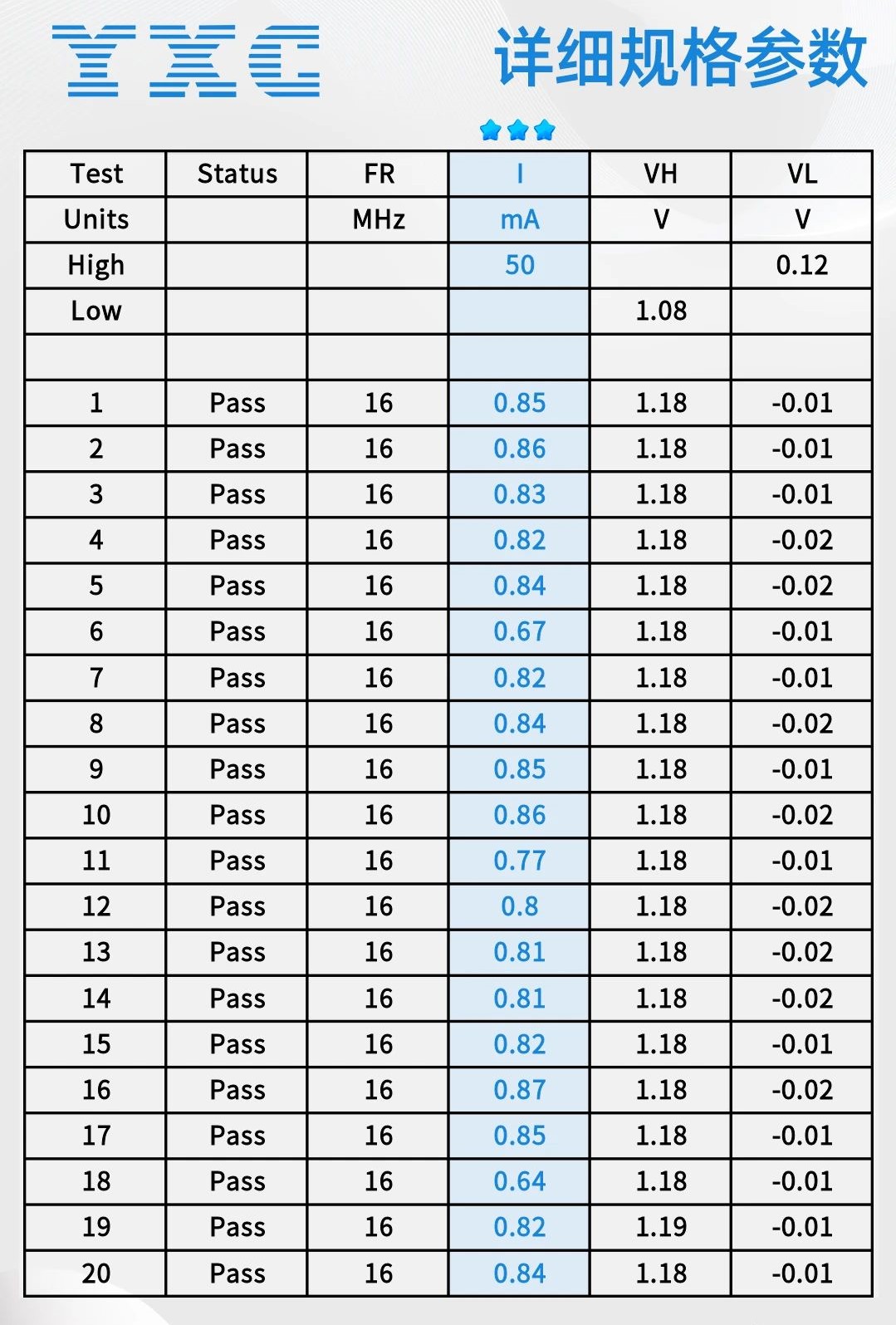

Test parameters: OSC 2016 8M 1.2V CMOS -40~85℃
● Frequency stability characteristics
In the range of -40 to +85℃, the total frequency stability is controlled within ±30ppm, ensuring the accurate operation of the equipment in various complex environments.

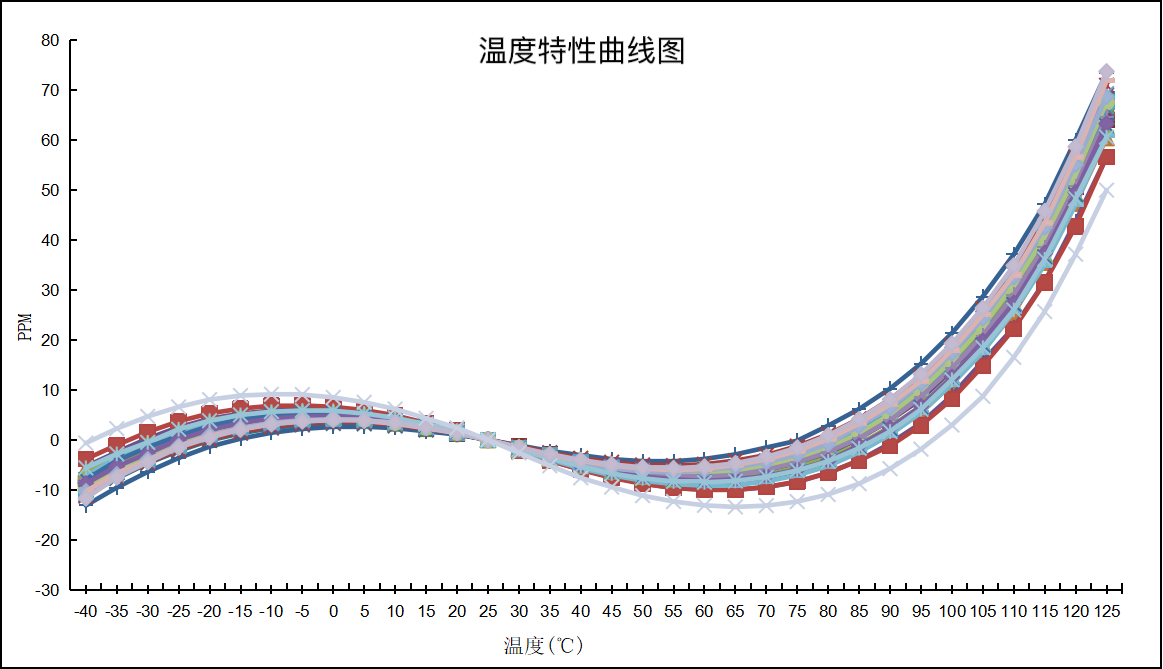

Temperature characteristic curve
● Miniaturization characteristics
Available in 2.0 x 1.6mm and 2.5 x 2.0mm packages, the compact design allows it to be easily integrated into various micro devices. YSO131LR can provide the smallest package of 2.0 x 1.6mm. Compared with the mainstream package in the market of 3.2 x 2.5mm, the area can be reduced by 60%.
YSO131LR series｜Typical application scenarios
The YSO131LR series is characterized by low power consumption and high stability. It is widely used in various electronic devices with high power consumption and performance requirements, such as the Internet of Things, wearable devices, industrial sensors and mobile terminals, to assist these devices. Achieve longer battery life and stable performance.
● Internet of Things devices (loT)
Application scenarios: smart home, industrial automation, environmental monitoring and other small equipment that require continuous operation.
Product advantages: IoT devices usually need to run for a long time and mostly rely on battery power. The low-power design of the YXC YSO131LR series can significantly extend the working time of these devices and reduce the frequency of battery replacement, thus improving system reliability and user experience.
● Wearable devices
Application scenarios: smart watches, TWS headsets, AR/VR glasses, health monitoring equipment and other devices that need to be worn for a long time.
Product advantages: Wearable devices have extremely high requirements on battery life and device size. With its 1.2V low-power design and compact size, the YSO131LR series can extend battery life while maintaining the device's portability and wearing comfort, making it an ideal choice for wearable devices.
● Mobile terminal equipment
Application scenarios: smartphones, tablets.
Product advantages: Mobile terminal users usually have high requirements on the battery life of their devices. The use of low-power crystal oscillators can significantly reduce the overall energy consumption of the device and extend battery life, thus improving the user's mobile experience.
● Sensor module
Application scenarios: Environmental monitoring, smart agriculture, industrial control and other equipment that require continuous monitoring and data collection.
Advantages of use: These applications usually require the equipment to work continuously for a long time and the power supply is limited. The ultra-low power consumption characteristics of the YSO131LR series ensure that the sensor module operates stably under low energy consumption and extends the equipment maintenance cycle.
● Remote sensing and detection equipment
Application scenarios: Geological testing equipment for scientific research, weather station equipment, etc. usually operate in the wild environment and lack stable power supply.
Advantages of use: In these scenarios, the battery life of the device is crucial. The use of low-power crystal oscillators can support long-term stable operation of equipment in harsh environments, ensure accurate collection and real-time transmission of data, and enhance the reliability and practicality of equipment.

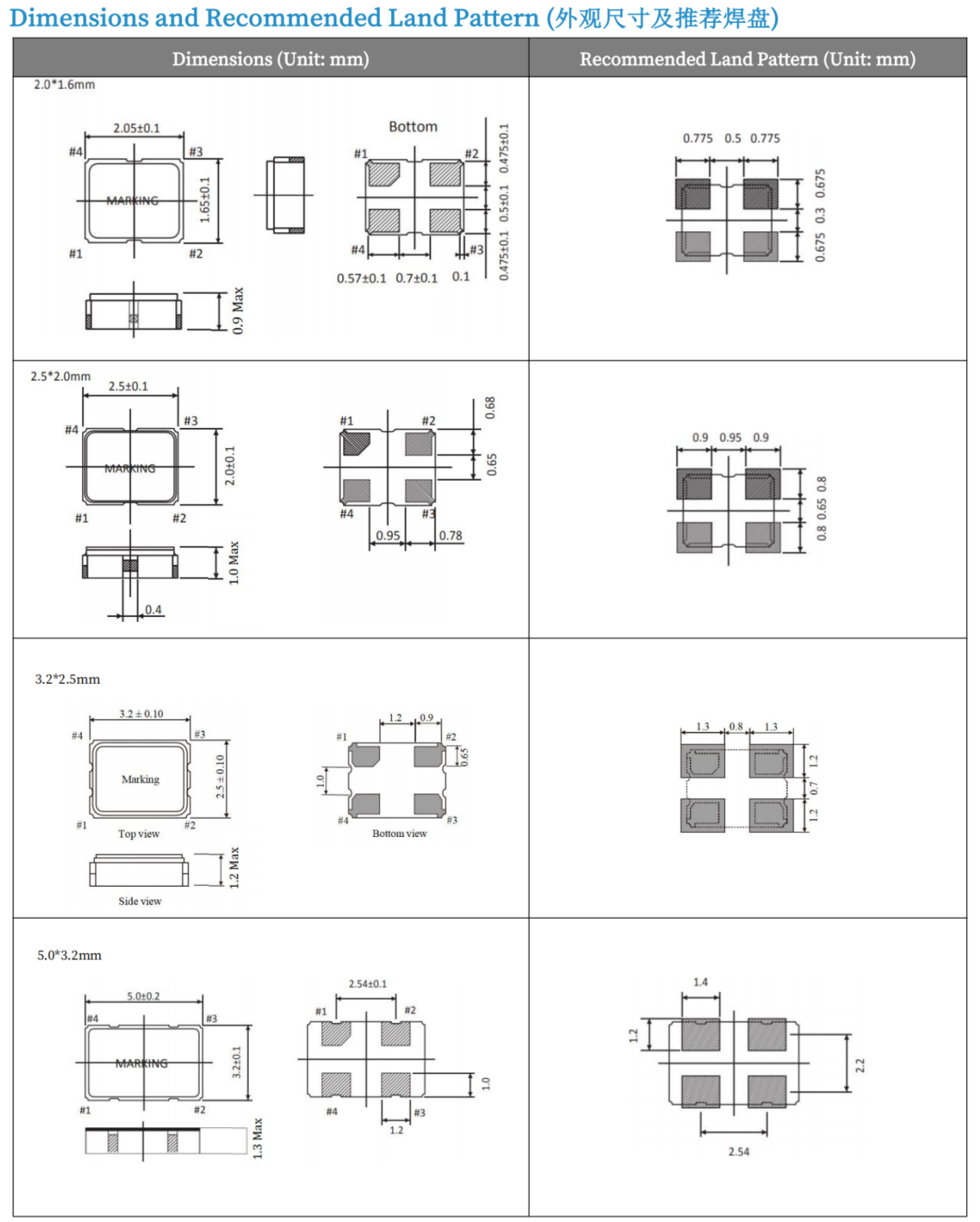

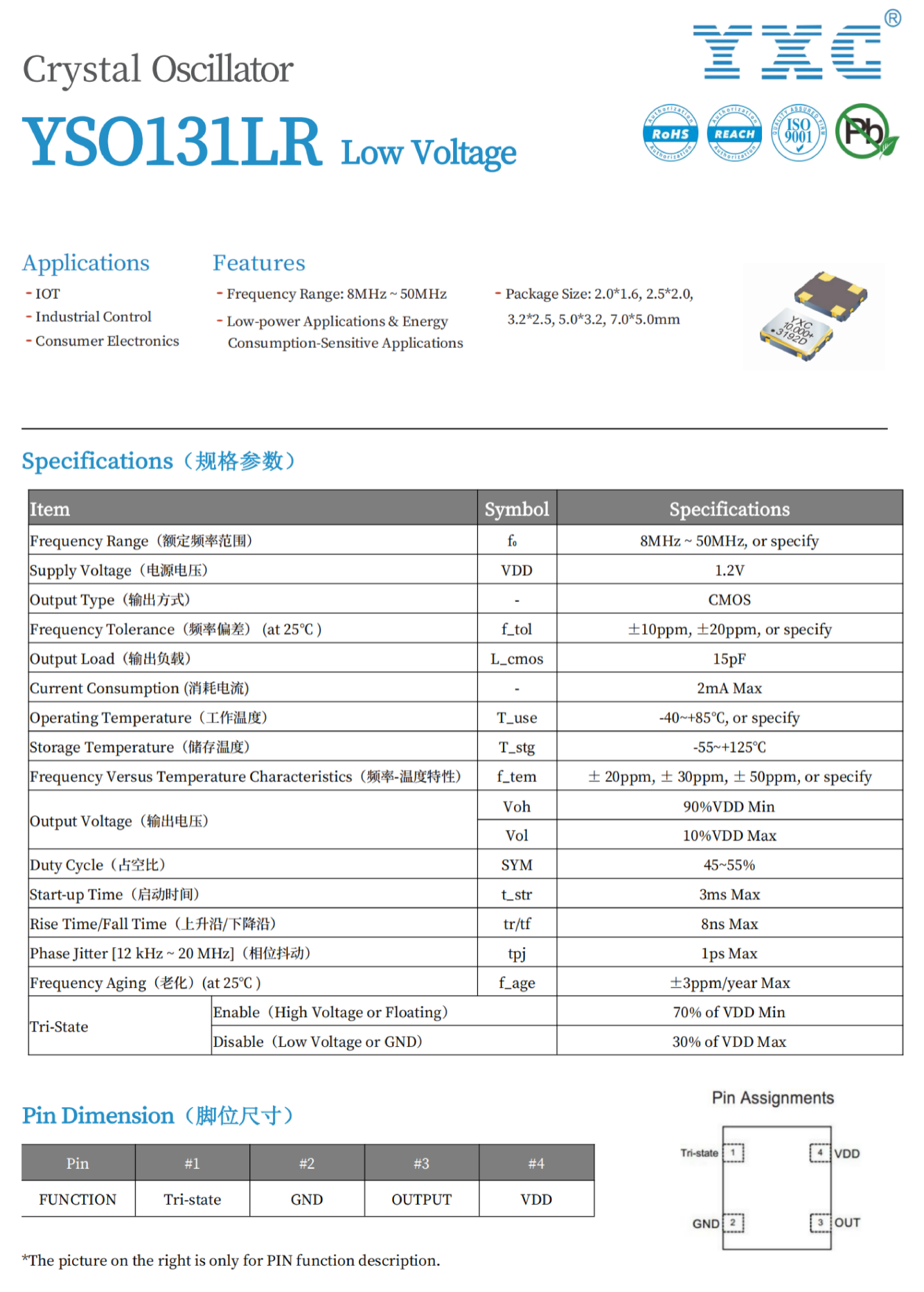

YSO131LR series｜Specification sheet
