* Ultra-small size, SMD Package
* Wide operating temperature :-40~+85℃
* Low phase noise:-160 dBc/Hz @ 1kHz(20M)

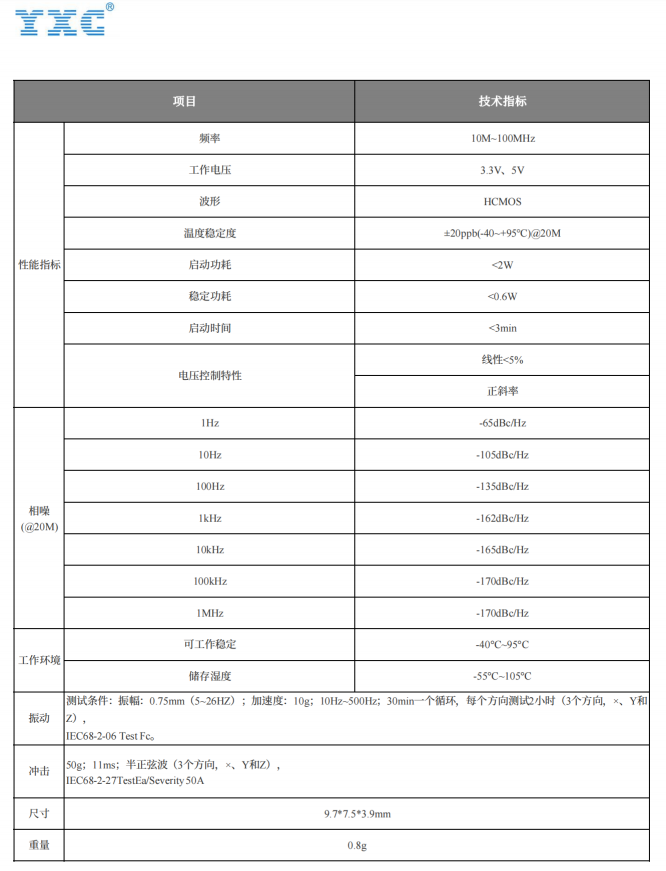

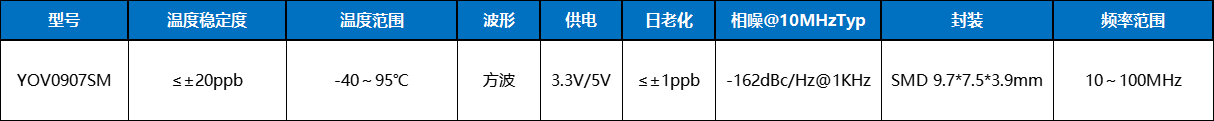

Specifications ：
| Specification | Value |
| Frequency Range | 10~100 MHz |
| Supply Voltage | 3.3 V / 5 V |
| Temperature Stability | ≤ ±20 ppb (best achievable, +40°C to +85°C) |
| Operating Temperature | −40°C ~ +85°C |
| Output Type | Sine Wave / HCMOS |
| Phase Noise @ 1 kHz | −162 dBc/Hz min. (20 MHz) |
| Package | 9.7 × 7.5 × 3.9 mm |
Features：
♦ Ultra-compact 9.7 × 7.5 × 3.9 mm SMD package.
♦ Temperature stability as tight as ±20 ppb over +40°C to +85°C.
♦ Low phase noise of −162 dBc/Hz at 1 kHz offset (20 MHz).
♦ Wide frequency range from 10 MHz to 100 MHz.
♦ Low aging rate of ≤ 3 ppb/day.
♦ Low steady-state power consumption of < 0.6 W.
♦ Sine wave and HCMOS output options.
♦ Supply voltage options of 3.3 V and 5 V.
♦ Warm-up time of less than 3 minutes.
♦ Wide operating temperature range from −40°C to +85°C.
Applications：
♦ 5G Active Antenna Units (AAU)
♦ Packet Transport Networks (PTN)
Voltage : 3.3V,5V
Frequency : 10～100MHz
Dimension : 9.7x7.5x3.9
Operating Temp :
Frequency Tolerance : ≤±20ppb@-40~+85℃
Output : Sine Wave / HCMOS
