Automotive Grade
Customize service is supported
RoHS, REACH Status: Compliant
Reliability: AEC-Q200
Applications: GPS, Automotive electronics, Industrial electronics.
| Item / Type | YSX530SC |
| Standard Frequency | 7.6 to 54 MHz |

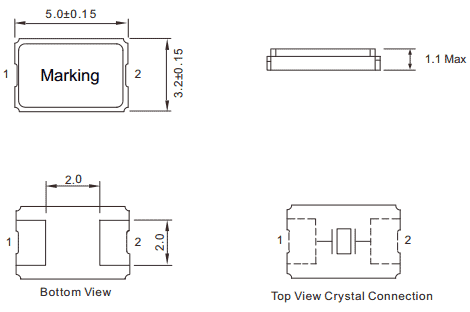

| Dimensions | 5.00 x 3.20 x 1.10 mm |
| Vibration Mode | AT Fundamental |
| Load Capacitance | 18pF, 20pF, or specify |
| Frequency Tolerance (at 25 ℃) | ±10 ppm, ± 30 ppm, or specify |
| Frequency Versus Temperature Characteristics | ± 50 ppm, or specify |
| Operating Temperature | - 40 ~ + 125℃, or specify |
| Storage Temperature | - 55 ~ + 125℃, or specify |
| Shunt Capacitance | 5 pF Max. |
| Level of Drive | 1~300μWMax. (100uW typical) |
| Frequency Aging (at 25 ℃) | ± 2 ppm / year Max. |
| Quartz Crystal Resonator |
Series | Dimensions (mm) |
Frequency (Hz) |
Load Capacitance (pF) |
Stability (ppm) |
Pin | Material | Operating Temp |
- | Remark |
| X | B | 5.0 x 3.2 | 8M | S | B | 2 | S | A | - | * |
| Fundamental | |
| 7.6 ~ 11.9MHz | 100 Ω Max. |
| 12.0 ~ 13.9MHz | 60 Ω Max. |
| 14.0 ~19.9 MHz | 50 Ω Max. |
| 20.0~ 54.0 MHz | 40 Ω Max. |
Frequency : 7.6MHz-54MHz
Dimension : 5.0 x 3.2 x 1.1 mm
Load Capacitance : 18pF, 20pF
Operating Temp :
Frequency Tolerance : ±10ppm ±30ppm
