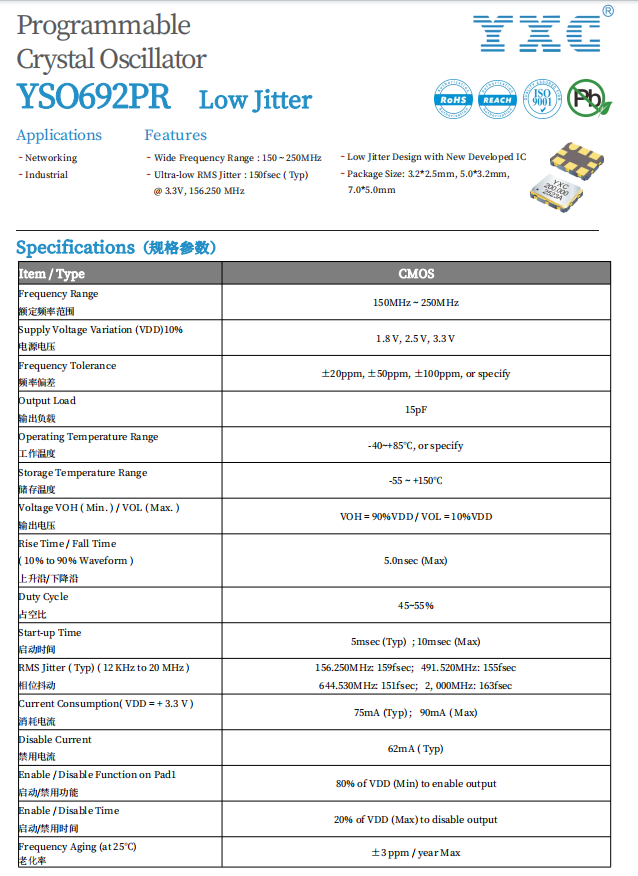

YSO692PR

Frequency Range 150MHz ~ 250MHz

Supply Voltage Variation (VDD)10% 1.8 V, 2.5 V, 3.3 V

Frequency Tolerance ±20ppm, ±50ppm, ±100ppm, or specify

Output Load 15pF

Operating Temperature Range -40~+85℃, or specify

RMS Jitter ( Typ) ( 12 KHz to 20 MHz ) 156.250MHz: 159fsec; 491.520MHz: 155fsec;644.530MHz: 151fsec; 2, 000MHz: 163fsec

Datasheet Contact Us

Parameter Table

Sample

Company Name

Name

Frequency

Dimensions

Voltage

Frequency Tolerance

Submit

Voltage : 1.8V, 2.5V, 3.3V

Frequency : 150~250MHz

Dimension : 3.2 x 2.5 5.0 x 3.2 7.0 x 5.0

Operating Temp : -40℃~+85℃

Frequency Tolerance : ±25ppm ±50ppm ±100ppm

Output : CMOS
