Clock Chip

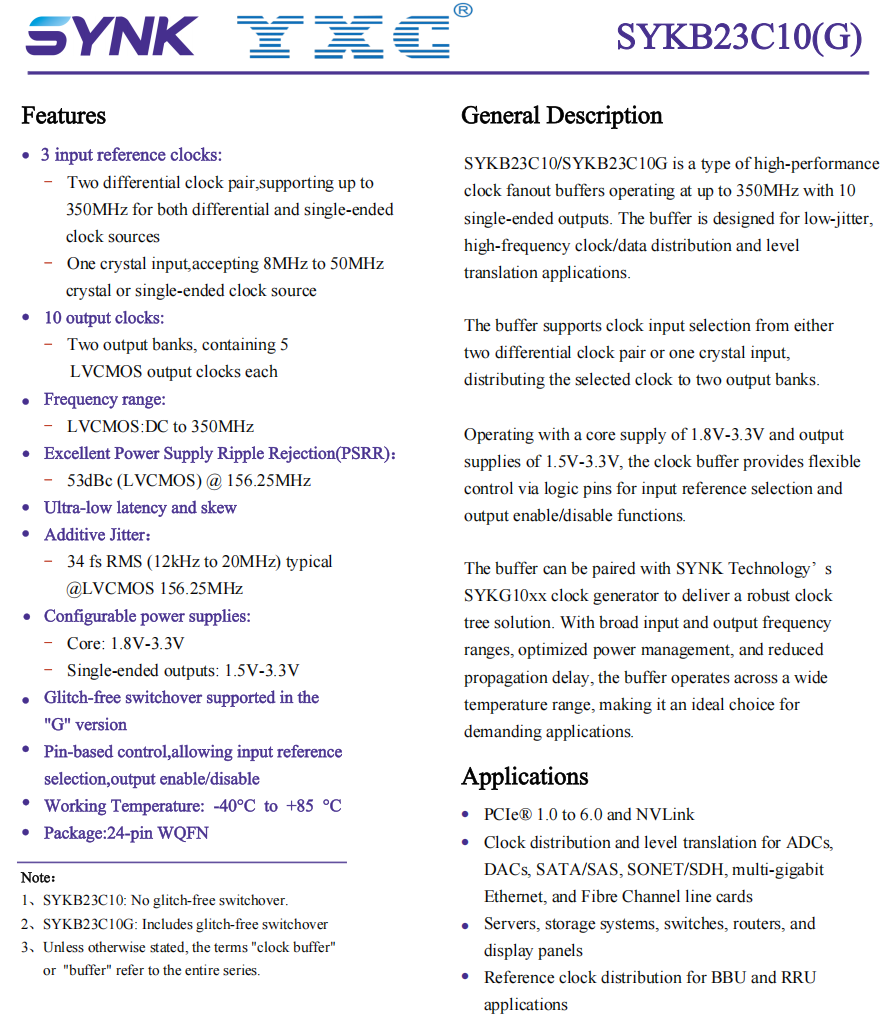

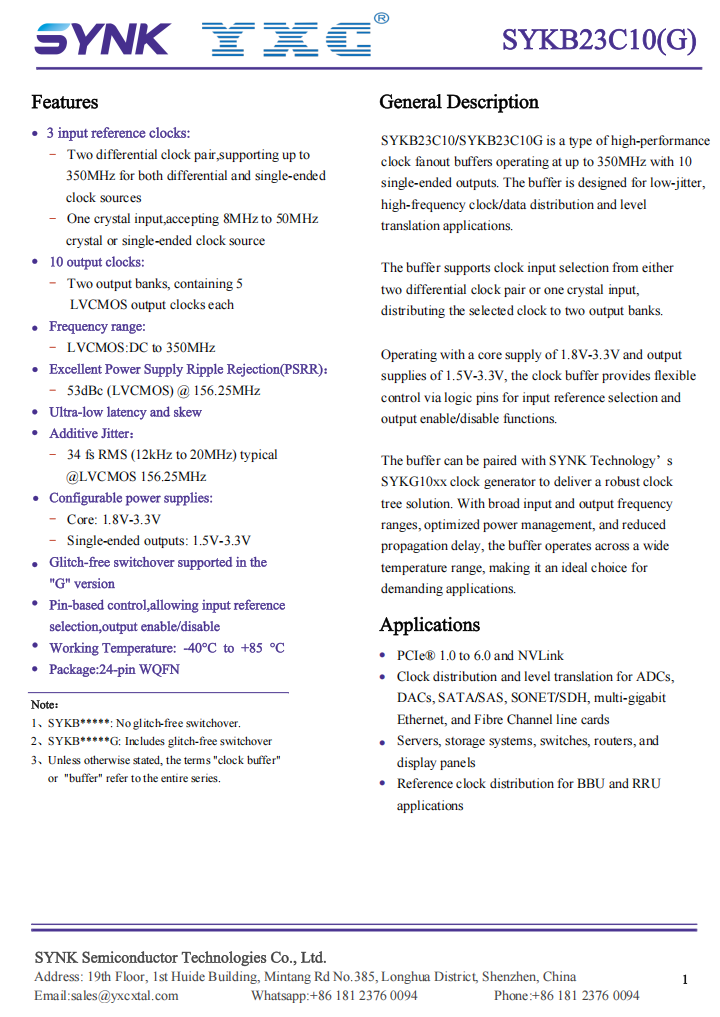

* The SYKB23C10(G) is a 10-output, ultra-low jitter single-ended LVCMOS clock buffer. It supports three input reference clocks (two differential/single-ended clock inputs supporting up to 350MHz, and one crystal input).
* The system distributes the selected reference clock to two output groups (5 outputs per group), providing 10 independent single-ended LVCMOS clock outputs with a maximum operating frequency of 350MHz. Designed for low-jitter single-ended signal distribution and level shifting across multiple clock domains, models with the "G" suffix also support glitch-free switching.
Voltage : Core: 1.8V~3.3V Out: 1.5V~3.3V
Frequency :
Dimension :
Operating Temp :
Frequency Tolerance :
Output :
Series : SYKB23C10G
Package : 32-pin WQFN
Output Freq : DC~350MHz
Output Type : LVCMOS
Output Qty : 10 SE(2 Banks)
Input Type : 3Inputs(2Diff/1Xtal)
Temp : -40~+85℃
Jitter : 34fs (156.25MHz) 10fs (PCIe Gen5)
