Clock Chip

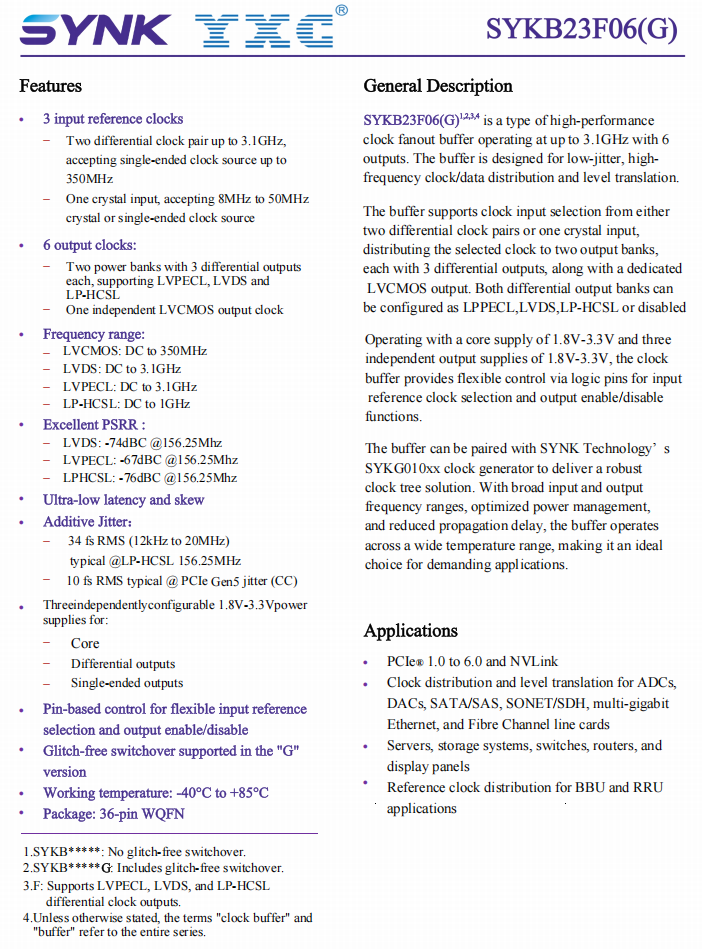

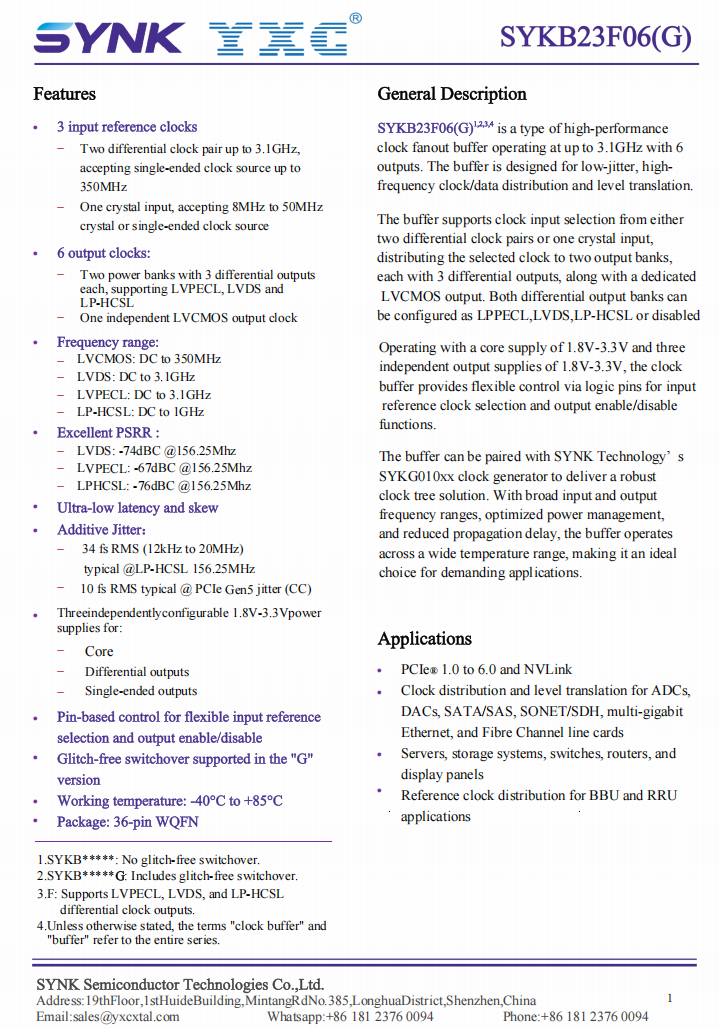

The SYKB23F06(G) is a 7-output (6 differential outputs + 1 single-ended output) ultra-low additive jitter differential clock buffer.
It supports three input reference clocks (two differential/single-ended clock inputs supporting up to 3.1 GHz, and one crystal input).
The system distributes the selected reference clock to two output groups, providing six differential clock outputs (three per output group, supporting LVPECL/LVDS/LP_HCSL) and one LVCMOS clock output. The maximum operating frequency of the differential clocks is up to 3.1 GHz.
Designed for high-frequency clock/data distribution and multi-stage conversion in complex systems, models with the "G" suffix also support glitch-free switching.
Voltage : 1.8V~3.3V
Frequency :
Dimension :
Operating Temp :
Frequency Tolerance :
Output :
Series : SYKB23F06G
Package : 40-pin WQFN
Output Freq : LVCMOS:350MHz LVDS/PECL:3.1GHz HCSL:1GHz
Output Type : LVPECL LVDS LP-HCSL LVCMOS
Output Qty : 6 Diff+1 SE
Input Type : 3Inputs(2Diff/1Xtal)
Temp : -40~+85℃
Jitter : 34fs (156.25MHz) 10fs (PCIe Gen5)
