SYKB23F08

* The SYKB23F08(G) is a 9-output (8 differential outputs + 1 single-ended output) ultra-low additive jitter differential clock buffer.

* It supports three input reference clocks (two differential/single-ended clock inputs supporting up to 3.1 GHz, and one crystal input).

* The system distributes the selected reference clock to two output groups, providing eight differential clock outputs (four per output group, supporting LVPECL/LVDS/LP_HCSL) and one LVCMOS clock output, with a maximum differential clock operating frequency of 3.1 GHz.

* It is specifically designed for high-frequency clock/data distribution and multi-stage conversion in complex systems. Models with the "G" suffix also support glitch-free switching.

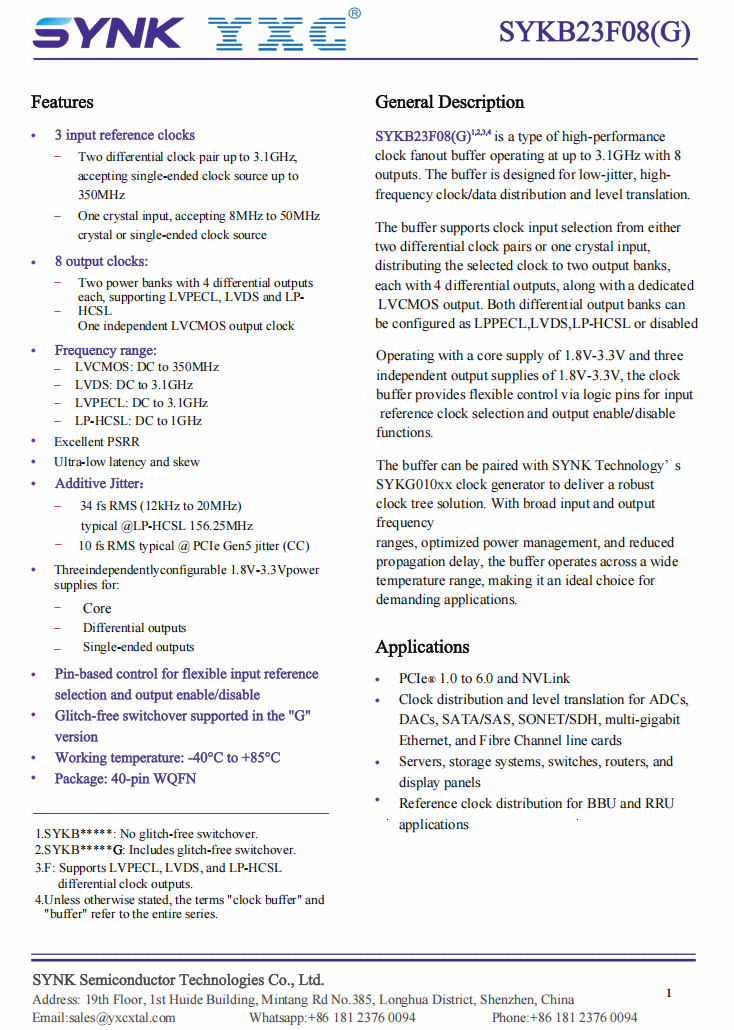

Datasheet Contact Us
Parameter Table
Sample
Submit

Voltage : 1.8V~3.3V

Frequency :

Dimension :

Operating Temp :

Frequency Tolerance :

Output :

Temp : -40~+85℃

Jitter : 34fs (156.25MHz) 10fs (PCIe Gen5)

Series : SYKB23F08

Package : 40-pin WQFN

Output Freq : LVCMOS:350MHz LVDS/PECL:3.1GHz HCSL:1GHz

Output Type : LVPECL LVDS LP-HCSL LVCMOS

Output Qty : 8 Diff+1 SE

Input Type : 3Inputs(2Diff/1Xtal)
