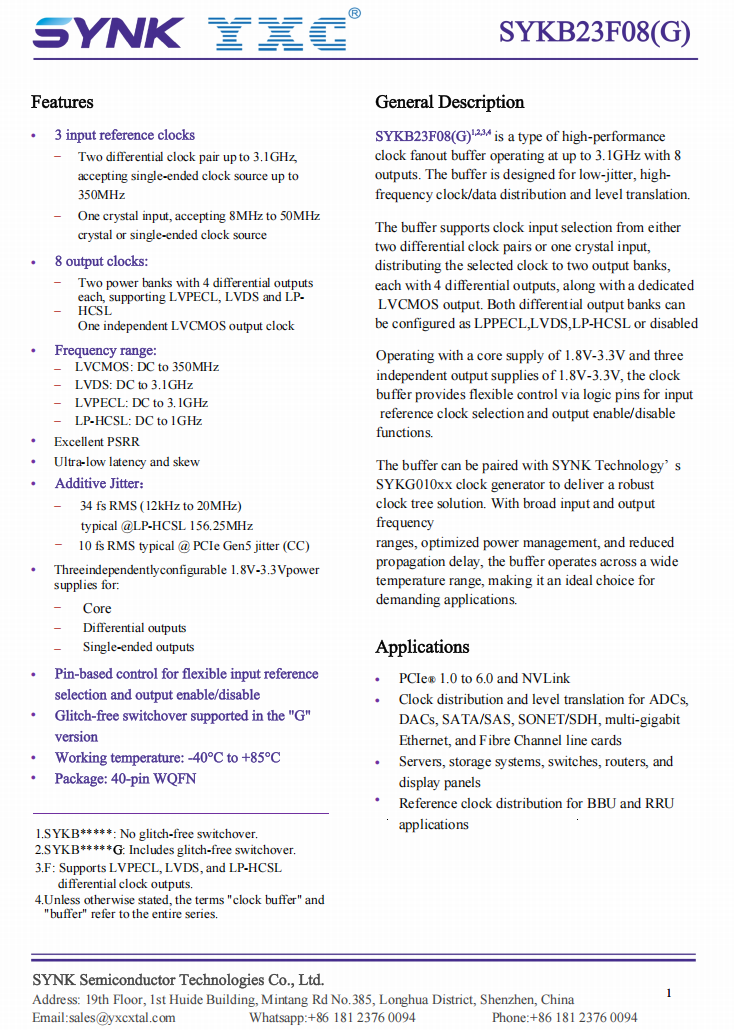

SYKB23F08G

* The SYKB23F08(G) is a 9-output (8 differential outputs + 1 single-ended output) ultra-low additive jitter differential clock buffer.

* It supports three input reference clocks (two differential/single-ended clock inputs supporting up to 3.1 GHz, and one crystal input).

* The system distributes the selected reference clock to two output groups, providing eight differential clock outputs (four per output group, supporting LVPECL/LVDS/LP_HCSL) and one LVCMOS clock output, with a maximum differential clock operating frequency of 3.1 GHz.

* It is specifically designed for high-frequency clock/data distribution and multi-stage conversion in complex systems. Models with the "G" suffix also support glitch-free switching.
