Clock Chip
-产品大图-576545.png)

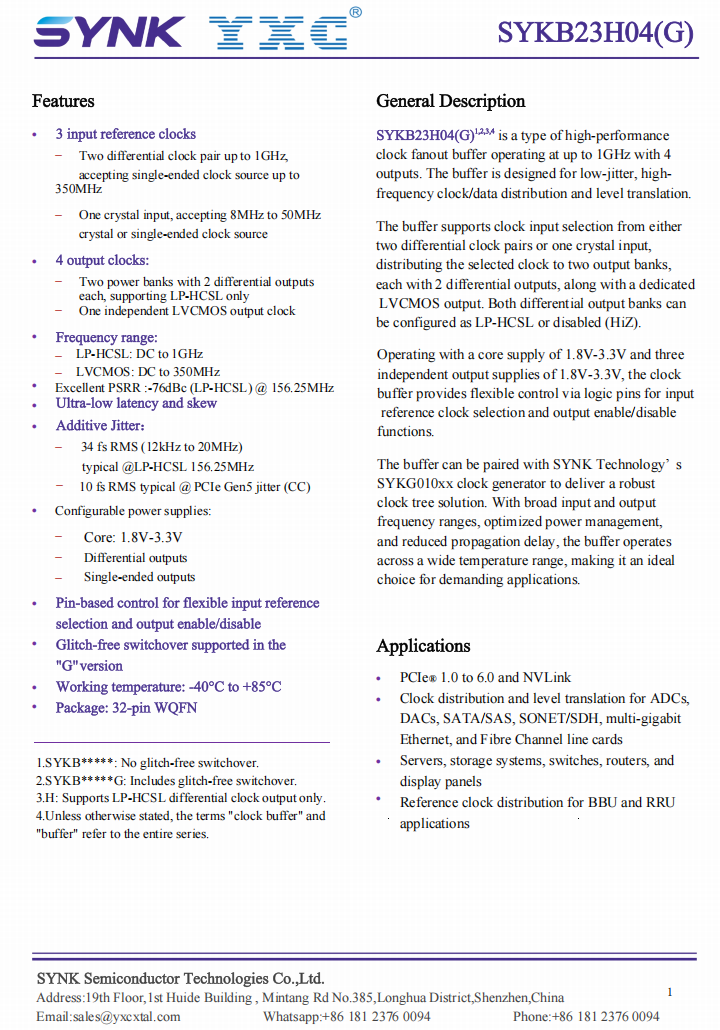

* The SYKB23H04(G) is a 5-output (4 differential outputs + 1 single-ended output) ultra-low additive jitter LP_HCSL differential clock buffer.
* It supports three input reference clocks (two differential/single-ended clock inputs, supporting up to 1GHz, and one crystal input).
* The system distributes the selected reference clock to two output groups, providing four differential clock outputs (two per output group, LP-HCSL only) and one LVCMOS clock output. The maximum operating frequency of the differential clocks is up to 1GHz.
* Designed for high-frequency clock and data distribution, models with the "G" suffix also support fault-free switching.
Voltage : 1.8V~3.3V
Frequency :
Dimension :
Operating Temp :
Frequency Tolerance :
Output :
Series : SYKB23H04G
Package : 32-pin WQFN
Output Freq : LP-HCSL:1GHz LVCMOS:350MHz
Output Type : LP-HCSL LVCMOS
Output Qty : 4 Diff+1 SE
Input Type : 3Inputs(2Diff/1Xtal)
Temp : -40~+85℃
Jitter : 34fs (156.25MHz) 10fs (PCIe Gen5)
