Clock Chip

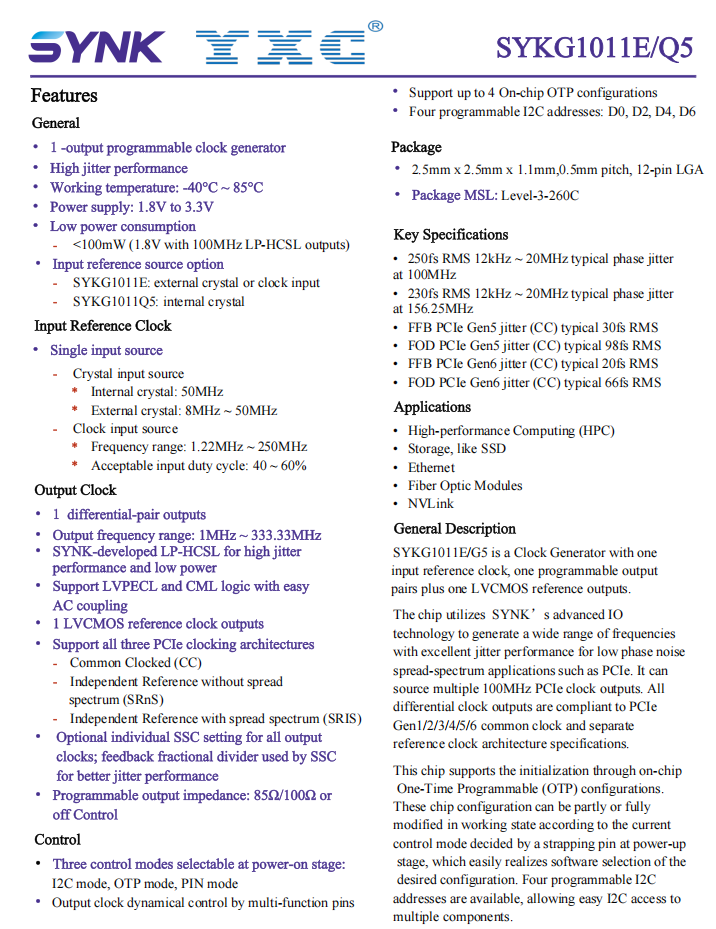

The SYKG1011Q5 is a single-output programmable clock generator with ultra-low phase jitter. It features an internal 50MHz crystal oscillator, providing one differential pair output and one LVCMOS reference clock output. It supports flexible initialization methods, allowing selection of I2C, OTP, or PIN control modes during power-up. Fully compatible with various PCIe clock architectures, including CC, SRNS, and SRIS, it meets the precise clocking requirements of high-performance computing and storage systems.
Voltage : 1.8V~3.3V
Frequency :
Dimension :
Operating Temp :
Frequency Tolerance :
Output :
Series : SYKG1011Q5
Package : 12-pin LGA
Output Freq : 1~333.33MHz
Output Type : Diff.(LP-HCSL/LVDS/HCSL) &LVCMOS
Output Qty : 1diffpair+1LVCMOS
Input Type : Internal50MHzCrystal
Temp : -40~+85℃
Jitter : 250fs@100MHz PCIeGen5/6:20~98fs
