Clock Chip

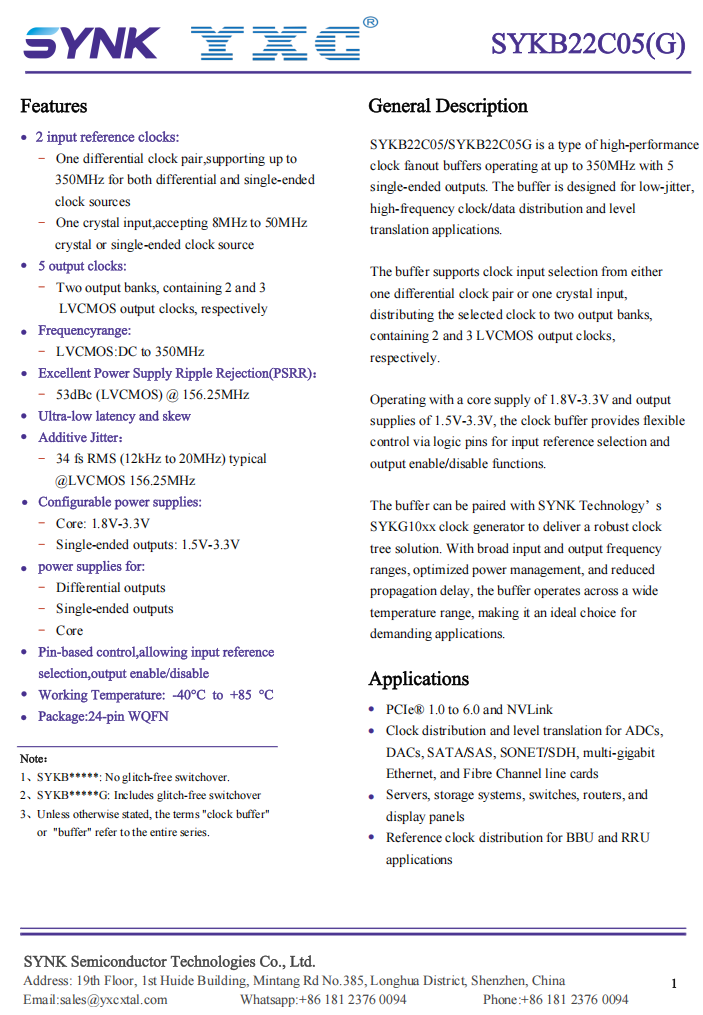

* The SYKB22C05(G) is a 5-output, ultra-low jitter single-ended LVCMOS clock buffer. It supports two input reference clocks (one differential/single-ended clock input, supporting up to 350MHz; and one crystal input).
* The system distributes the selected reference clock to two output groups (containing 2 and 3 outputs respectively), thus providing five single-ended LVCMOS clock outputs with a maximum operating frequency of 350MHz. Designed for low-jitter single-ended signal distribution and level shifting across multiple clock domains, models with the "G" suffix also support glitch-free switching.
Voltage : Core:1.8V~3.3V Out:1.5V~3.3V
Frequency :
Dimension :
Operating Temp :
Frequency Tolerance :
Output :
Series : SYKB22C05G
Package : 24-pin WQFN
Output Freq : DC~350MHz
Output Type : LVCMOS
Output Qty : 5 SE(2 Banks)
Input Type : 2Inputs(1Diff/1Xtal)
Temp : -40~+85℃
Jitter : 34fs (156.25MHz) 10fs (PCIe Gen5)
