Crystals
Competitive pricing
Highly mass production capability
Package: 3000 pieces/Reel
RoHS, REACH Status: Compliant
Applications: Mobile phone, Notebook and DSC.
| Item / Type | YST310S |
| Standard Frequency | 32.768KHz |

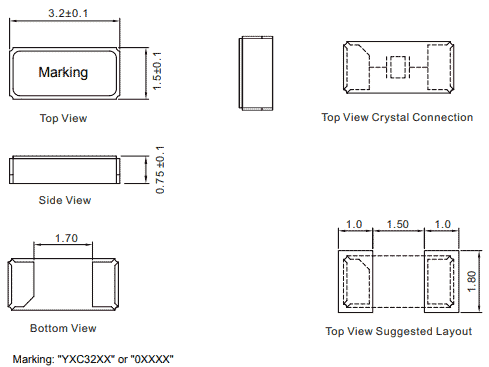

| Dimensions | 3.2 x 1.5 x 0.75 mm |
| Frequency Tolerance (at 25 ℃) | ± 10ppm, 20ppm, or specify |
| Load Capacitance | 7pF, 9pF, 12.5pF, or specify |
| Parabolic Coefficient (B) | ( - 0.03 ± 0.01 ) * 10-6 / ℃2 |
| Operating Temperature | -20~+70℃，-40~+85℃，or specify |
| Shunt Capacitance | 1.2pF typical |
| Motional Capacitance | 4.4fF typical |
| Level of Drive | 1.0 μW |
| Frequency Aging (at 25 ℃) | ± 3 ppm / year Max. |
| Storage Temperature | -55 ~ +125℃ |
| Equivalent Series Resistance(ESR) | 70KΩ Max |
| Quartz Crystal Resonator |
Dimensions (mm) |
Frequency (Hz) |
Load Capacitance (pF) |
Stability (ppm) |
Pin | Material | Operating Temp |
| X | 3.2 x 1.5 | 32.768K | G | B | 2 | S | I |
Frequency : 32.768KHz
Dimension : 3.2 x 1.5 x 0.75 mm
Load Capacitance : 6pF, 7pF, 9pF, 12.5pF
Operating Temp :
Frequency Tolerance : ±10ppm, ±20ppm
