Ceramic Xtal

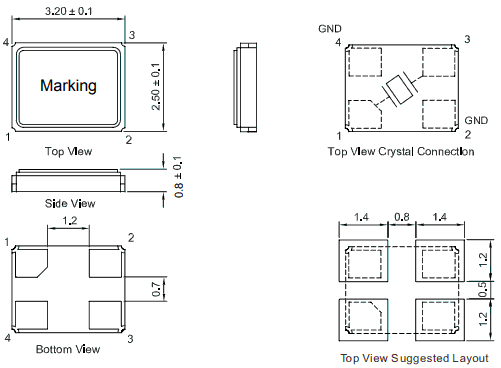

External Dimensions: 3.2 x 2.5 mm
Excellent heat resistance and environmental characteristics
Contains Pb in sealing glass exempted by RoHS directive
Applications：Smart Wearable, IOT
| Item / Type | YSX320GA |
| Nominal Frequency Range | 11.0592 ~ 54 MHz |
| Vibration Mode | AT Fundamental |
| Load Capacitance | 10pF, 20pF, or specify |
| Frequency Tolerance (at 25 ℃) | ±10 ppm, ± 20 ppm, or specify |
| Frequency Versus Temperature Characteristics | ± 20 ppm, or specify |
| Operating Temperature | - 20 ~ + 70 ℃ , - 40 ~ + 85 ℃, or specify |
| Storage Temperature | -40 ~ +85 ℃, or specify |
| Shunt Capacitance | 5 pF Max. |
| Level of Drive | 1 ~ 100 μW (10μW typical) |
| Frequency Aging (at 25 ℃) | ± 3 ppm / year Max. |
| Quartz Crystal Resonator |
Dimensions (mm) |
Frequency (Hz) |
Load Capacitance (pF) |
Freq Stability (ppm) |
Pin | Material | Operating Temp |
| X | 3.2 x 2.5 | 12M | S | B | 4 | G | C |
| Fundamental | |
| 11.0592 ~ 16 MHz | 80 Ω |
| 16 ~ 20 MHz | 60 Ω |
| 20 ~ 54 MHz | 40 Ω |
Frequency : 11.0592MHz-54MHz
Dimension : 3.2 x 2.5 x 0.8 mm
Load Capacitance : 10pF, 20pF, or specify
Operating Temp :
Frequency Tolerance : ±10ppm ±20ppm
