Crystals
High precision and high frequency stability.
Excellent heat resistance and environmental characteristics.
RoHS, REACH Status: Compliant
Applications: Smart Wearable, TWS, IOT.
| Item / Type | YSX1612SL |
| Nominal Frequency Range | 24 MHz to 60 MHz |
| Dimensions | 1.6 x 1.2 x 0.35 mm |
| Vibration Mode | AT Fundamental |
| Load Capacitance | 8pF, 9pF, 12pF, or specify |
| Frequency Tolerance (at 25 ℃) | ±10 ppm, ± 20 ppm, or specify |
| Frequency Versus Temperature Characteristics | ± 20 ppm, or specify |
| Operating Temperature | - 20 ~ + 70 ℃ , - 40 ~ + 85 ℃, or specify |
| Storage Temperature | -40 ~ +85 ℃, or specify |
| Shunt Capacitance | 3 pF Max. |
| Level of Drive | 100 μW Max |
| Frequency Aging (at 25 ℃) | ± 2 ppm / year Max. |
| Quartz Crystal Resonator |

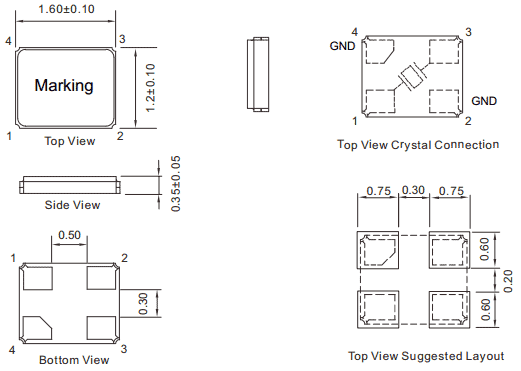

Dimensions (mm) |
Frequency (Hz) |
Load Capacitance (pF) |
Stability (ppm) |
Pin | Material | Operating Temp |
| X | 1.6 x 1.2 | 24M | O | B | 4 | S | I |
| Fundamental | |
| 24 to 40 MHz | 150Ω Max. |
| 41 to 60 MHz | 100Ω Max. |
Frequency : 24MHz-60MHz
Dimension : 1.6 x 1.2 x 0.35 mm
Load Capacitance : 8pF, 9pF, 12pF, or specify
Operating Temp :
Frequency Tolerance : ±10ppm ±20ppm
