Crystals
Small Size Crystal
Package: 5000 Pieces/Reel
RoHS, REACH Status: Compliant
Applications：Smart phone, Smart Bracelet etc.
| Item / Type | YSX1610SK |
| Standard Frequency | 32.768KHz |

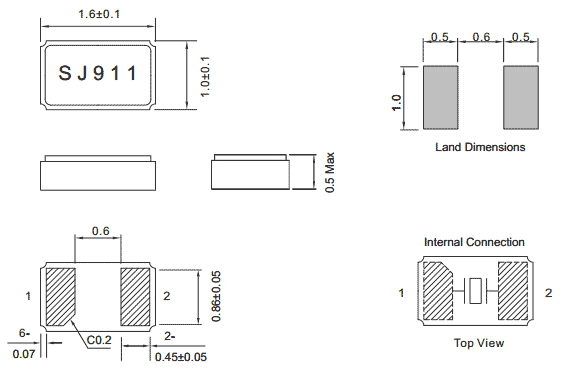

| Dimensions | 1.6 x 1.0 x 0.50 mm |
| Load Capacitance | 7pF, 9pF, 12.5pF, or specify |
| Frequency Tolerance(at 25 ℃) | ±10ppm, ±20ppm, or specify |
| Parabolic Coefficient (B) | ( - 0.03 ± 0.01 ) * 10-6 / ℃2 |
| Operating Temperature | - 40 ~ + 85 ℃, or specify |
| Storage Temperature | -55 ~ +125℃ |
| Shunt Capacitance (C0) | 1.3pF typical |
| Motional Capacitance (C1) | 7.5fF typical |
| Level of Drive | 0.1 μW |
| Frequency Aging (at 25 ℃) | ± 3 ppm / year Max. |
| Equivalent Series Resistance(ESR) | 90KΩ Max |
| Quartz Crystal Resonator |
Dimensions (mm) |
Frequency (Hz) |
Load Capacitance (pF) |
Freq Stability (ppm) |
Pin | Material | Operating Temp |
| X | 1.6 x 1.0 | 32.768K | G | B | 2 | S | I |
Frequency : 32.768KHz
Dimension : 1.6 x 1.0 x 0.50 mm
Load Capacitance : 6pF, 7pF, 9pF, 12.5pF
Operating Temp :
Frequency Tolerance : ±20ppm
