Crystals
Fixed Frequency: 32.768KHz

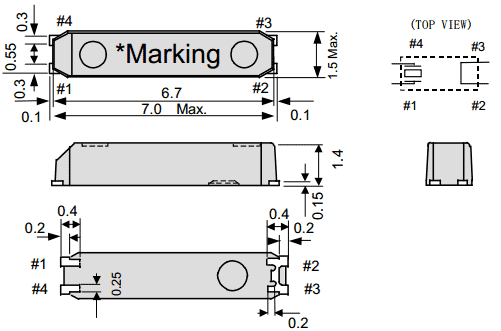

Dimensions: 7.0 x 1.5 x 1.4 mm
Package: 3000 Pieces/Reel
High reliable environmental performance
Applications: Small communication devices
| Item / Type | YSX146GA |
| Nominal Frequency Range | 32.768KHz |
| Vibration Mode | +2° X-cut Fundamental |
| Load Capacitance | 7pF, 9pF, 12.5pF, or specify |
| Frequency Tolerance (at 25 ℃) | ±10ppm, ± 20 ppm, or specify |
| Operating Temperature | - 40 ~ + 85 ℃ |
| Storage Temperature | -55 ~ +125 ℃ |
| Shunt Capacitance | 2.0pF typical |
| Level of Drive | 1.0 μW Max. |
| Frequency Aging (at 25 ℃) | ± 5 ppm / year Max. |
| Turnover Temperature | 25 ℃ ± 5 ℃ |
| Parabolic Coefficient | (- 0.036 ± 0.006) * 10 -6 / ℃2 |
| Motional Capacitance | 3.0fF typical |
| Quartz Crystal Resonator |
Dimensions (mm) |
Frequency (Hz) |
Load Capacitance (pF) |
Freq Stability (ppm) |
Pin | Material | Operating Temp |
| X | 7.0 x 1.5 | 32.768K | S | D | 4 | G | I |
Frequency : 32.768KHz
Dimension : 7.0 x 1.5 x 1.4 mm
Load Capacitance : 6pF, 7pF, 9pF, 12.5pF
Operating Temp :
Frequency Tolerance : ±10ppm, ±20ppm
