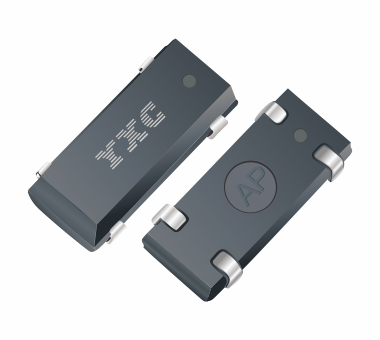

YSX306GA

High reliable environmental performance

Package: 3000 pieces/Reel

Applications: Small communication devices

Datasheet Contact Us
Parameter Table
Sample
Item / Type YSX306GA
Nominal Frequency Range 32.768KHz
Dimensions 8.0 x 3.8 x 2.5 mm
Vibration Mode +2° X-cut Fundamental
Load Capacitance 7pF, 9pF, 12.5pF, or specify
Frequency Tolerance (at 25 ℃)  ±10ppm, ± 20 ppm, or specify
Operating Temperature  - 40 ~ + 85 ℃
Storage Temperature -55 ~ +125℃
Shunt Capacitance 2.0pF typical
Level of Drive 1.0 μW Max.
Frequency Aging (at 25 ℃) ± 5 ppm / year Max.
Motional Capacitance 3.0fF typical

Part Number Guide            X803832768KGD4GI
Quartz Crystal
Resonator
Dimensions
(mm)
Frequency
(Hz)
Load Capacitance
(pF)
Stability
(ppm)
Pin Material Operating
Temp
X 8.0 x 3.8 32.768K G D 4 G I

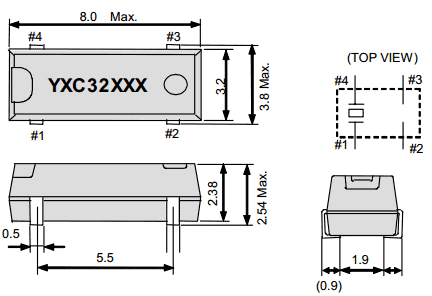

External Dimensions


(Unit: mm)
Submit

Frequency : 32.768KHz

Dimension : 8.0 x 3.8 x 2.5 mm

Load Capacitance : 6pF, 7pF, 9pF, 12.5pF

Operating Temp : -40℃~+85℃

Frequency Tolerance : ±20ppm
