Ceramic Xtal
Highly mass production capability
A great number of standard frequencies
Package: 1000 pieces/Reel
RoHS Status: Compliant
Applications: Industrial Control Consumers.
| Item / Type | YSX530GA |
| Nominal Frequency Range | 8 ~ 54 MHz |

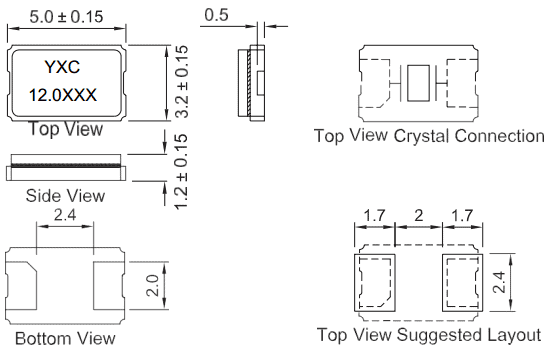

| Dimensions | 5.0 x 3.2 x 1.2 mm |
| Vibration Mode | AT Fundamental |
| Load Capacitance | 10pF, 20pF, or specify |
| Frequency Tolerance (at 25 ℃) | ±10 ppm, ± 20 ppm, or specify |
| Frequency Versus Temperature Characteristics | ± 20 ppm, or specify |
| Operating Temperature | - 20 ~ + 70 ℃ , - 40 ~ + 85 ℃, or specify |
| Storage Temperature | -55 ~ +125 ℃, or specify |
| Shunt Capacitance | 5 pF Max. |
| Level of Drive | 1~300μWMax. (100uW typical) |
| Frequency Aging (at 25 ℃) | ± 3 ppm / year Max. |
| Resonator | Dimensions (mm) |
Frequency (Hz) |
Load Capacitance (pF) |
Freq Stability (ppm) |
Pin | Material | Operating Temp |
| X | 5.0 x 3.2 | 12M | S | D | 2 | G | C |
| Fundamental | |
| 8 ~ 12 MHz | 60 Ω ~ 80 Ω |
| 12 ~ 25 MHz | 40 Ω ~ 60 Ω |
| 25 ~ 54 MHz | 30 Ω ~ 40 Ω |
Frequency : 8MHz-54MHz
Dimension : 5.0 x 3.2 x 1.2 mm
Load Capacitance : 10pF, 20pF, or specify
Operating Temp :
Frequency Tolerance : ±10ppm ±20ppm
